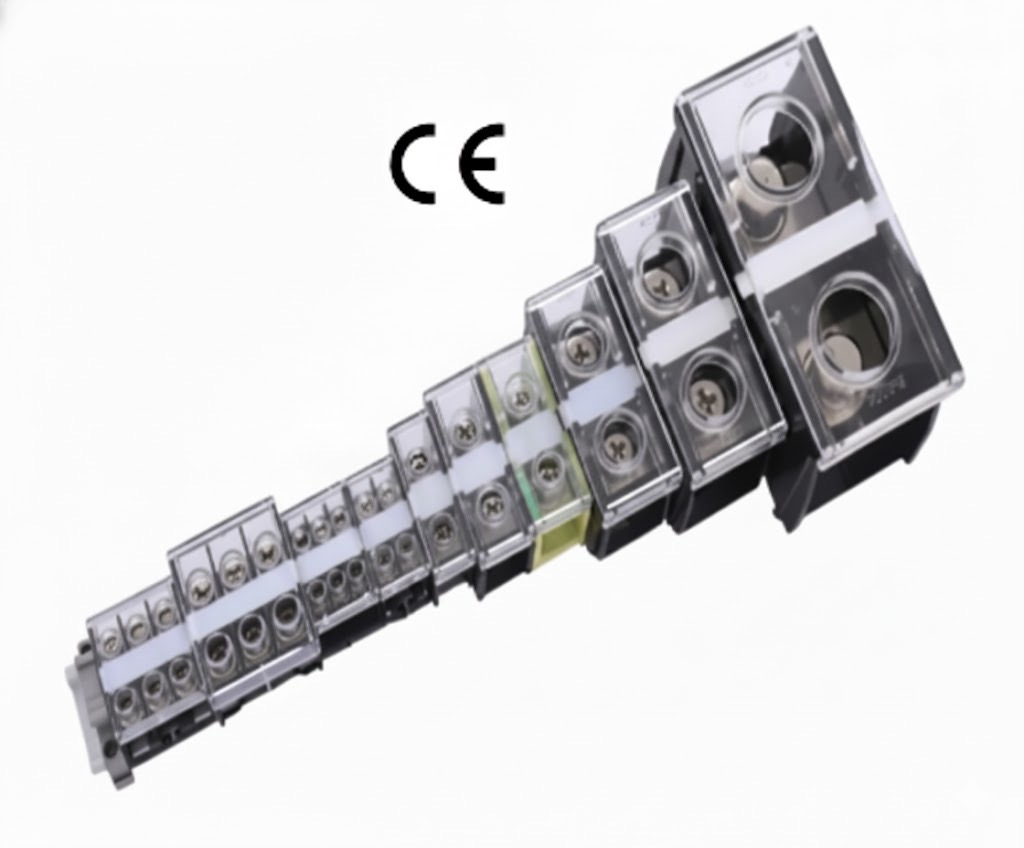

RADI-IN Series 600 V DIN-rail feed-through terminal blocks connect conductors directly in industrial control panels and power systems. They feature two in-series connection points, a transparent protective cover, and a flame-retardant insulated body (typically PA66/UL94V-0). Mounted on a DIN rail, they handle high current (up to 240 A) circuits and support labeling or bridging. Commonly used in power distribution boards, motor control centers, switchgear, and renewable energy systems, they meet EN 60947-7-1:2009 standard for 600-V operation, providing reliable and compact wiring for industrial electrical installations.

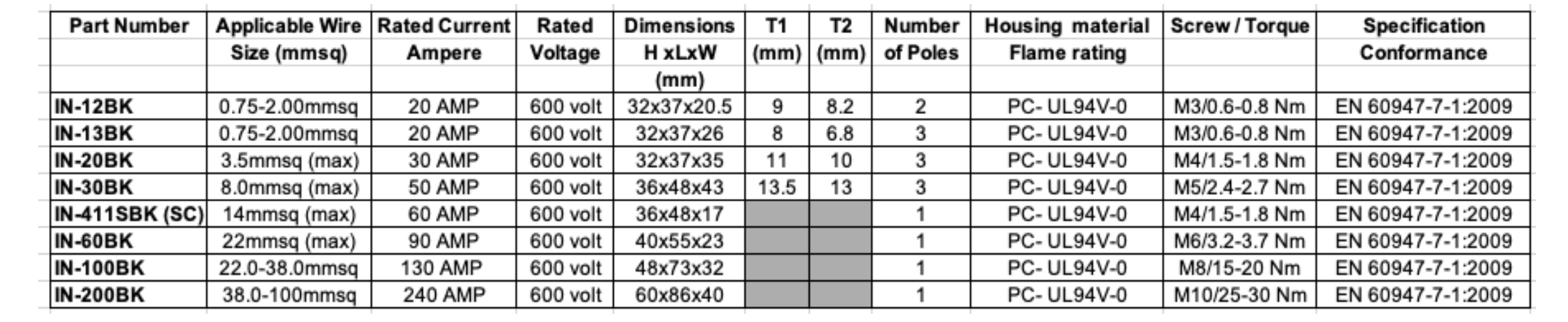

Product Specifications:

Terminal contact: Brass Nickel coated

Housing material: Polycarbonate

Dielectric Strength: 2500V, 1 min

Flame Rating: UL94 V-0
