RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals
RADI-LUGS Heavy Duty Copper Tube Splice Terminals

RADI-LUGS Heavy Duty Copper Tube Splice Terminals

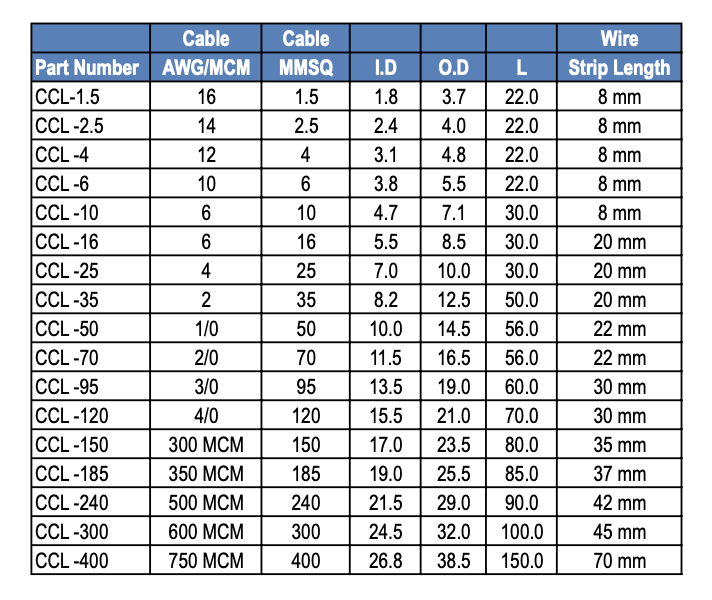

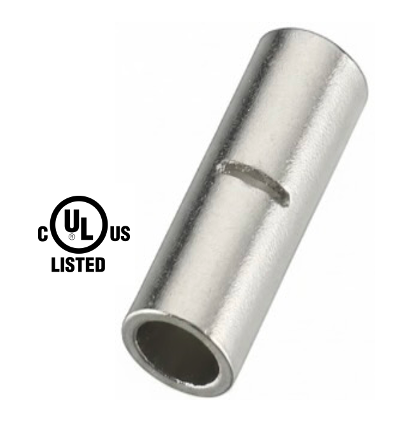

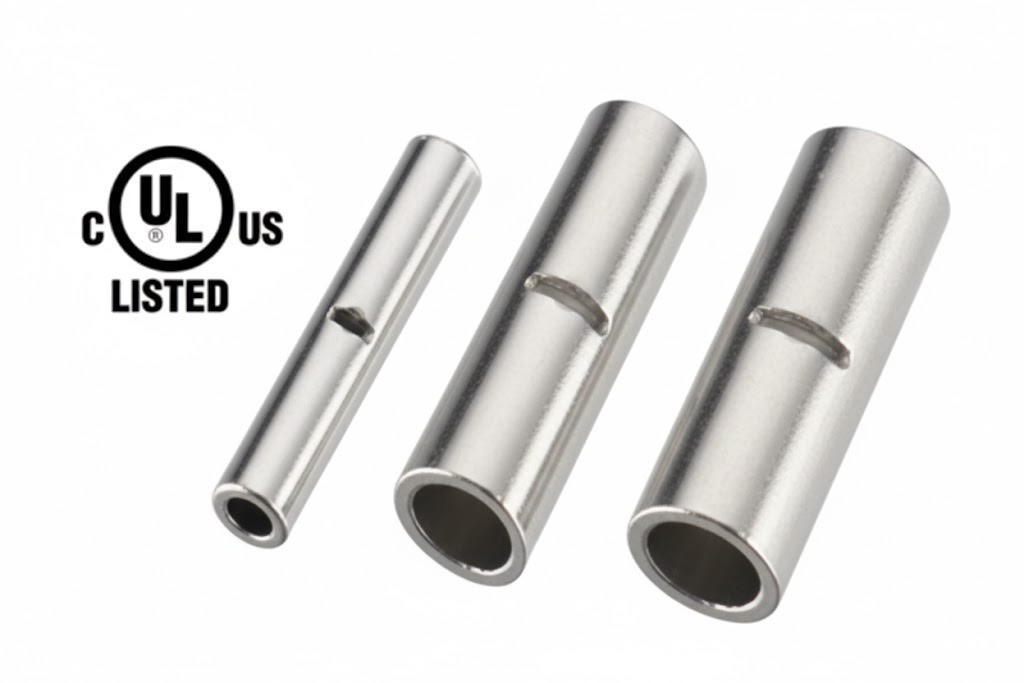

CCL series of copper tube splice terminals are produced from high conductivity copper tubing and tin plated to provide corrosion resistance. Suitable for use at voltage up to 35KV provided connector is properly taped. 35KV is the maximum voltage in all bare splices

This series of product is tested and certified to UL-ZMVV, ANSI/UL 486A-486B and ANSI/UL 486C

Download Catalogue Download Catalogue Enquire About this Product
